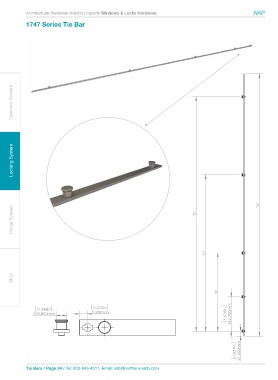

1747 Series Tie Bar
Operator System
Locking System 0.276in
7.000mm
Hinge System 0.346in "A"
8.800mm
"D"
"C"
Misc
0.346in 0.276in "B"
8.800mm 7.000mm 5.618in
142.700mm
"D" 0.827in
C" 21.000mm
